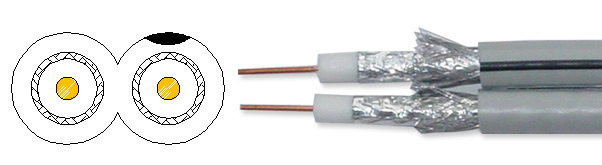

2RG6(Double)
Description
|
||
Rated Temperature |
75o |
|
RG6 |
||
Conductor: |
Solid Bare copper |
|
Insulation: |
Foam PE |
|
Shield: |
AL Foil |
|
Braiding Shield: |
Solid Bare copper(or Solid AL wire) |
|
Braiding consistency: |
65% |
|
| Jacket: |
PVC |
|
Electrical Characteristic |
||
1.0-100.0MHz Impedance (ohms) |
75+/-3 ohm |
|
Nominal Capacitance |
16.2 pF/ft |
|
Conductor to Shield |
53.1 pF/ft |
|
Core dielectric(kv) |
>=1.0 |
|
| Insulation Resistance (Mohms*km) |
>=5000 |
|
>=3.0 |
||
Application |
||
| 2RG6 (Double) Siamese cable Electrical Characteristics | |||
Frequeney MHz |
Attenuation dB/100m |
Frequeney MHz |
Return loss dB |
10 |
2.66 |
5-470 |
>=26 |
50 |
4.79 |
||
200 |
9.28 |
470-860 |
>=24 |
700 |
18.37 |
||
1000 |
21.26 |
860-2400 |
>=22 |
1450 |
26.37 |
||
2200 |
32.14 |
||
