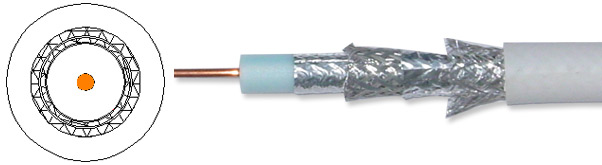

RG11(QUAD)
|
Description
|
||
Rated Temperature |
75o |
|
Rated Voltage(V) |
30 |
|
| Standard: | ML-C-17G | |
Conductor: |
Solid Bare Copper |
|
Insulation: |
Foam PE |
|
Braiding Shield 1: |
Al-foil(Bonded)+ Al-Mg Braiding(60%) |
|
| Braiding Shield 2: | Al-foil(Double)+ Al-Mg Braiding(40%) | |
Jacket: |
PVC
|
|
Electrical Characteristic |
||
1.0-2300.0MHz Impedance (ohms) |
75Ω +/-3Ω |
|
Core dielectric(kv) |
≥1.0 |
|
Insulation Resistance (MΩ*km) |
≥5000 |
|
Jacket dielectric (kv) |
≥3.0 |
|
| RG Coaxial Cable Electrical Characteristics | ||||||
Type and Specification |
Impedance ohm |
Attenuation Fre.dB/100m |
Core dielectric |
Insulation Resistance MΩ*km |
Jacket Dielectric kv |
|
RG-11 |
75+/-3
|
1MHz |
≤0.72 |
≥1.0 |
≥5000 |
≥3.0 |
50MHz |
≤3.21 |
|||||
100MHz |
≤4.23 |
|||||
200MHz |
≤5.84 |
|||||
700MHz |
≤12.04 |
|||||
1000MHz |
≤14.83 |
|||||
