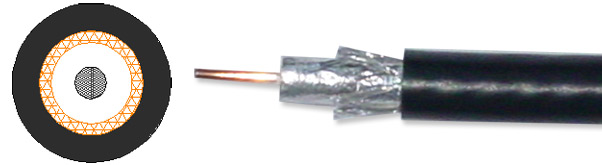

RG6
|
Description
|
||
Rated Temperature |
75o |
|
Rated Voltage(V) |
30 |
|
| Standard: |
ML-C-17G | |
Conductor: |
Stranded Bare Copper(CCS) |
|
| AWG | 18 | |
Insulation: |
FPE |
|
Braiding Shield: |
Solid Bare copper(or Solid AL wire) |
|
Jacket: |
PVC |
|
Electrical Characteristic |
||
1.0-3000.0MHz Impedance (ohms) |
75Ω +/-3Ω |
|
Core dielectric(kv) |
≥1.0 |
|
Insulation Resistance (MΩ*km) |
≥5000 |
|
Jacket dielectric (kv) |
≥3.0 |
|
| RG Coaxial Cable Electrical Characteristics | ||||||
Type and Specification |
Impedance Ω |
Attenuation Fre.dB/100m |
Core dielectric |
Insulation Resistance MΩ*km |
Jacket Dielectric kv |
|
RG-6 |
75+/-3
|
1MHz |
≤0.85 |
≥1.0 |
≥5000 |
≥3.0 |
50MHz |
≤4.79 |
|||||
100MHz |
≤6.72 |
|||||
200MHz |
≤9.28 |
|||||
400MHz |
≤13.28 |
|||||
700MHz |
≤18.36 |
|||||
1000MHz |
≤21.01 |
|||||
1200MHz |
≤24.59 |
|||||
1450MHz |
≤26.36 |
|||||
1800MHz |
≤28.96 |
|||||
2200MHz |
≤32.23 |
|||||
3000MHz |
≤37.33 |
|||||
