Material
(mm)
Solid BC
1.12
Foam PE
2.95
Aluminum Tape
3.07
Tinned Copper
3.66
PVC
4.95
Units
(metric)
GHz
39
%
83
NA
1.45
(nS/m)
4.02
ohms
50
(pF/m)
80.3
(uH/m)
0.2
90+/-3
ohms/km
17.6
ohms/km
14.3
Volts DC
1000
Volts RMS
3000
kW
2.5

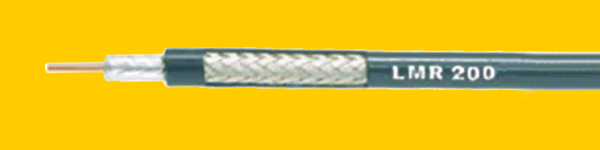

| LMR 200 | |||
|
|||
| Construction Specifications | |||
| Description |
Material |
(mm) |
|
| Inner Conductor |
Solid BC |
1.12 |
|
| Dielectric | Foam PE |
2.95 |
|
| Outer Conductor |
Aluminum Tape |
3.07 |
|
| Overall Braid | Tinned Copper |
3.66 |
|
| Jacket | PVC |
4.95 |
|
| Electrical Specifications | |||
| Performance Property |
Units |
(metric) |
|
| Cutoff Frequency | GHz |
39 |
|
| Velocity of Propagation | % |
83 |
|
| Dielectric Constant | NA |
1.45 |
|
| Time Delay | (nS/m) |
4.02 |
|
| Impedance | ohms |
50 |
|
| Capacitance |
(pF/m) |
80.3 |
|
| Inductance |
(uH/m) |
0.2 |
|
| Shielding (%) | 90+/-3 |
||
| DC Resistance | |||
| Inner Conductor | ohms/km |
17.6 |
|
| Outer Conductor | ohms/km |
14.3 |
|
| Voltage Withstand | Volts DC |
1000 |
|
| Jacket Spark | Volts RMS |
3000 |
|
| Peak Power | kW |
2.5 |
|
| Frequency (MHz) |
50 |
150 |
220 |
450 |
900 |
1500 |
1800 |
2000 |
2500 |
|
| Attenuation dB/100 m | 7.5 |
13.1 |
15.9 |
22.8 |
32.6 |
42.4 |
46.6 |
49.3 |
55.4 |
