Material
(mm)
CCA
2.74
Foam PE
7.24
Aluminum Tape
7.39
Tinned Copper
8.13
PVC
10.29
Units
(metric)
GHz
16.2
%
85
NA
1.38
(nS/m)
3.92
ohms
50
(pF/m)
80
(uH/m)
0.2
90+/-3
ohms/km
4.6
ohms/km
5.4
Volts DC
2000
Volts RMS
8000
kW
16

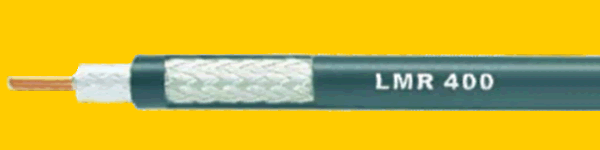

| LMR 400 | |||
|
|||
| Construction Specifications | |||
| Description |
Material |
(mm) |
|
| Inner Conductor |
CCA |
2.74 |
|
| Dielectric | Foam PE |
7.24 |
|
| Outer Conductor |
Aluminum Tape |
7.39 |
|
| Overall Braid | Tinned Copper |
8.13 |
|
| Jacket | PVC |
10.29 |
|
| Electrical Specifications | |||
| Performance Property |
Units |
(metric) |
|
| Cutoff Frequency | GHz |
16.2 |
|
| Velocity of Propagation | % |
85 |
|
| Dielectric Constant | NA |
1.38 |
|
| Time Delay | (nS/m) |
3.92 |
|
| Impedance | ohms |
50 |
|
| Capacitance |
(pF/m) |
80 |
|
| Inductance |
(uH/m) |
0.2 |
|
| Shielding (%) | 90+/-3 |
||
| DC Resistance | |||
| Inner Conductor | ohms/km |
4.6 |
|
| Outer Conductor | ohms/km |
5.4 |
|
| Voltage Withstand | Volts DC |
2000 |
|
| Jacket Spark | Volts RMS |
8000 |
|
| Peak Power | kW |
16 |
|
| Frequency (MHz) |
50 |
150 |
220 |
450 |
900 |
1500 |
1800 |
2000 |
2500 |
|
| Attenuation dB/100 m | 3.4 |
5.5 |
6.6 |
8.4 |
13.4 |
17.4 |
19.1 |
20.1 |
22.7 |
|
